LM71-Q1 具有 SPI 接口的汽車級 ±1.5°C 溫度傳感器

數據： LM71/LM71Q SPI/MICROWIRE 13-Bit Plus Sign Temperature Sensor 數據表

描述

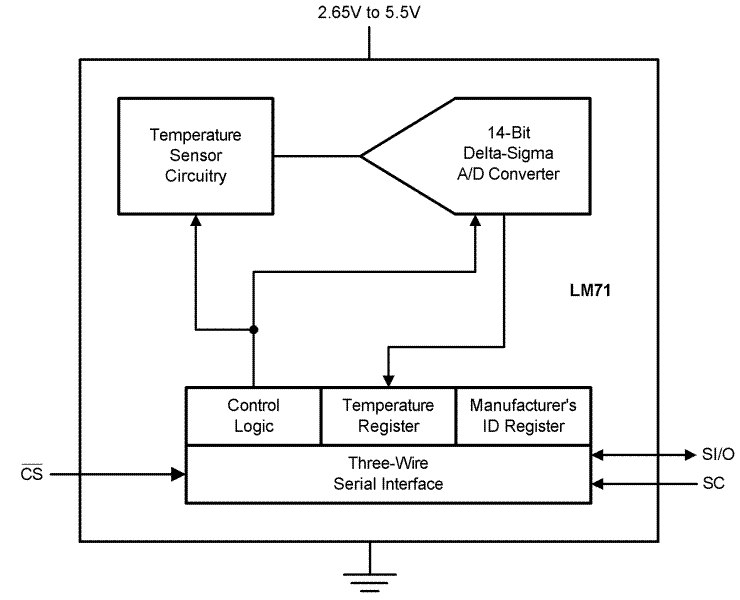

The LM71 is a low-power, high-resolution digital temperature sensor with an SPI and MICROWIRE compatible interface, available in the 5-pin SOT-23 or the 6-pin WSON (no pull back) package. The host can query the LM71 at any time to read temperature. Its low operating current is useful in systems where low power consumption is critical.

The LM71 has 13-bit plus sign temperature resolution (0.03125°C per LSB) while operating over a temperature range of −40°C to +150°C.

The LM71’s 2.65V to 5.5V supply voltage range, fast conversion rate, low supply current, and simple SPI interface make it ideal for a wide range of applications. The LM71Q is available in the 5-lead SOT-23 package only.

關鍵規格

所有商標均為其各自所有者的財產。

LM71Q符合AEC-Q100 0級標準，采用汽車級流程制造
5針SOT-23封裝或6引腳無拉回WSON封裝
在-40°C至+ 150°C的整個范圍內工作
SPI和MICROWIRE總線接口
- 電源電壓：2.65V至5.5V

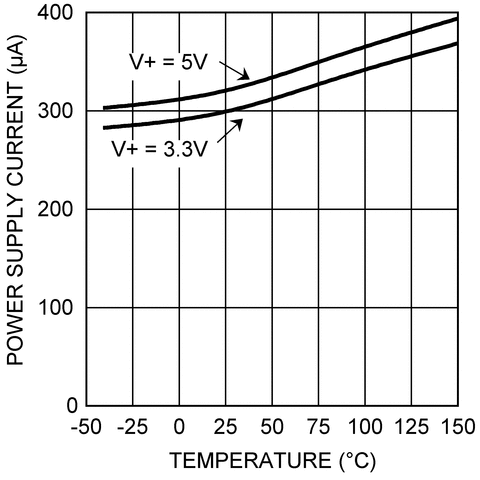

- 電源電流
  - 工作：300μA（典型值）
  - 550μA（最大）
- 溫度精度
  - -10°C至+ 65°C：±1.5°C（最大值）
  - -40°C至150°C：+ 3 /- 2°C（最大）
- 溫度分辨率：31.25 m°C

參數 與其它產品相比數字溫度傳感器


Interface
Local Sensor Accuracy (Max) (+/- C)
Temp Resolution (Max) (bits)
Operating Temperature Range (C)
Supply Voltage (Min) (V)
Supply Voltage (Max) (V)
Supply Current (Typ) (uA)
Supply Current (Max) (uA)
Features
Addresses
Rating
Package Group
Package Size: mm2:W x L (PKG)
Iq (Typ) (uA)

LM71-Q1	LM71	LM73
SPI, Microwire	SPI, Microwire	I2C, SMBus, 2-Wire
1.5	1.5	1
14	14	14
-40 to 150	-40 to 150	-40 to 150
2.65	2.65	2.7
5.5	5.5	5.5
300	300	320
550	550	550
Shutdown	Shutdown	Configurable Resolution Programmable Alert One-Shot Conversion Shutdown UL Recognized
NA	NA	6
Automotive	Catalog	Catalog
SOT-23	SOT-23 WSON	SOT-23-THIN
5SOT-23: 8 mm2: 2.8 x 2.9(SOT-23)	5SOT-23: 8 mm2: 2.8 x 2.9(SOT-23) See datasheet (WSON)	6SOT-23-THIN: 8 mm2: 2.8 x 2.9(SOT-23-THIN)
300	300	320
