優(yōu)勢和特點

• Maximum Offset Voltage of 3μV
• Maximum Offset Voltage Drift of 30nV/°C

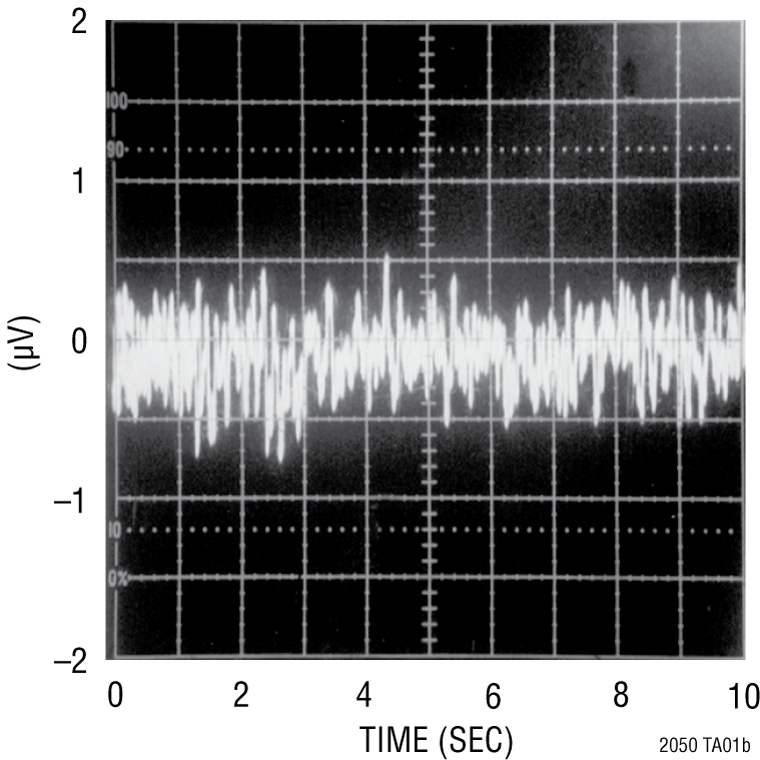

• Noise: 1.5μV_P-P (0.01Hz to 10Hz Typ)
• Voltage Gain: 140dB (Typ)
• PSRR: 130dB (Typ)
• CMRR: 130dB (Typ)
• Supply Current: 0.8mA (Typ)
• Supply Operation

  • LTC2050: 2.7V to 6V
  • LTC2050HV: 2.7V to ±5.5V
  • LTC2050HVMP: 4.5V to ±5.5V

• Extended Common Mode Input Range
• Output Swings Rail-to-Rail
• Input Overload Recovery Time: 2ms (Typ)
• Operating Temperature Range

  • LTC2050: –40°C to 125°C
  • LTC2050HVMP: –55°C to 150°C

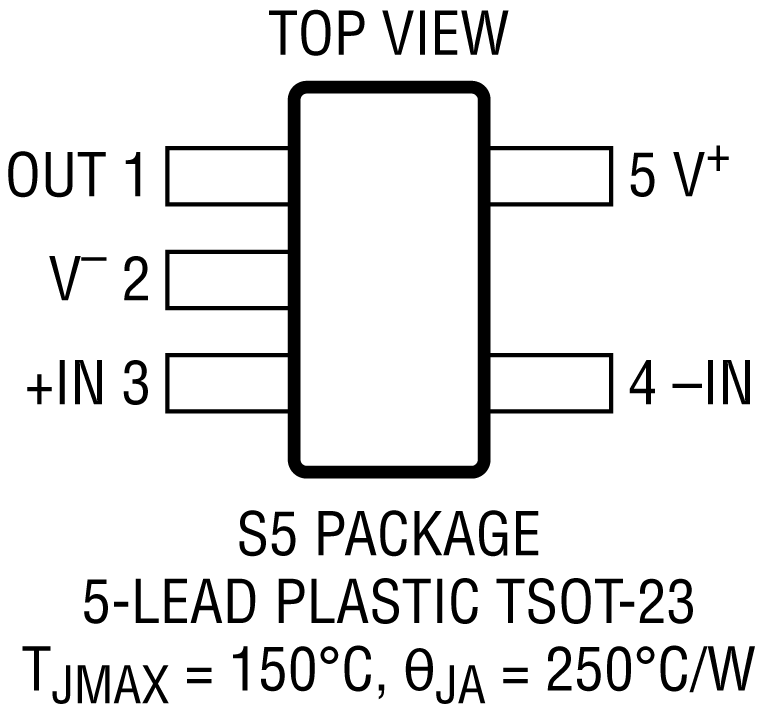

• Low Profile (1mm) SOT-23 (ThinSOT^?) Package

產(chǎn)品詳情

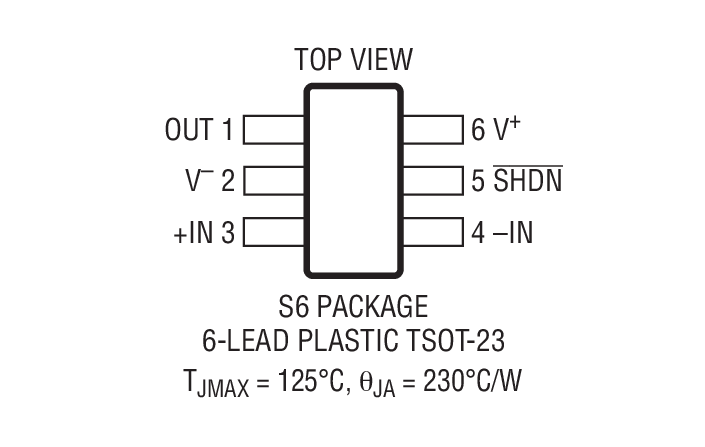

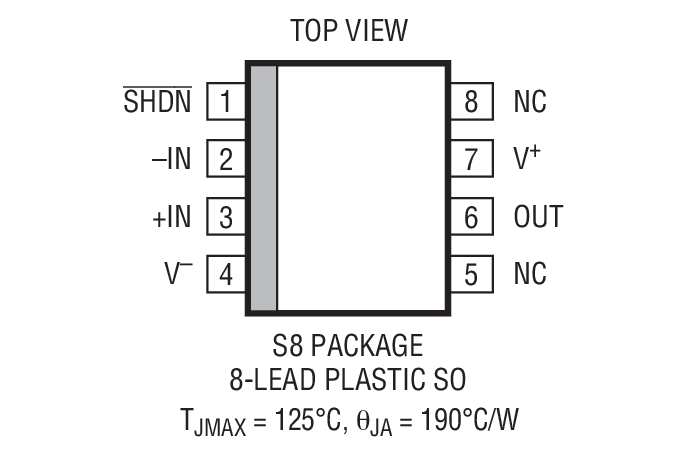

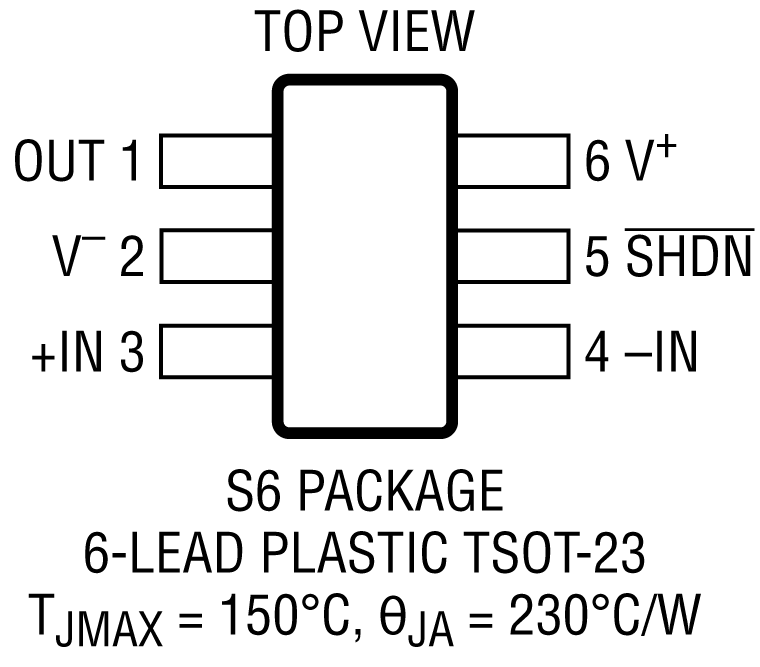

The LTC2050 and LTC2050HV are zero-drift operational amplifiers available in the 5- or 6-lead SOT-23 and SO-8 packages. The LTC2050 operates from a single 2.7V to 6V supply. The LTC2050HV operates on supplies from 2.7V to ±5.5V. The current consumption is 800μA and the versions in the 6-lead SOT-23 and SO-8 packages offer power shutdown (active low). The LTC2050HVMP offer operating range from 4.5V to ±5.5V and operating temperature range of – 55°C to 150°C.

The LTC2050, despite its miniature size, features uncompromising DC performance. The typical input offset voltage and offset drift are 0.5μV and 10nV/°C. The almostzero DC offset and drift are supported with a power supply rejection ratio (PSRR) and common mode rejection ratio (CMRR) of more than 130dB.

The input common mode voltage ranges from the negative supply up to typically 1V from the positive supply. The LTC2050 also has an enhanced output stage capableof driving loads as low as 2kΩ to both supply rails. The open-loop gain is typically 140dB. The LTC2050 also features a 1.5μVP-P DC to 10Hz noise and a 3MHz gain bandwidth product.

Applications

• Thermocouple Amplifiers
• Electronic Scales
• Medical Instrumentation
• Strain Gauge Amplifiers
• High Resolution Data Acquisition
• DC Accurate RC Active Filters
• Low Side Current Sense

方框圖
